Scans 1D, 2D and PDF417 barcodes on paper, mobile phones and computer displays

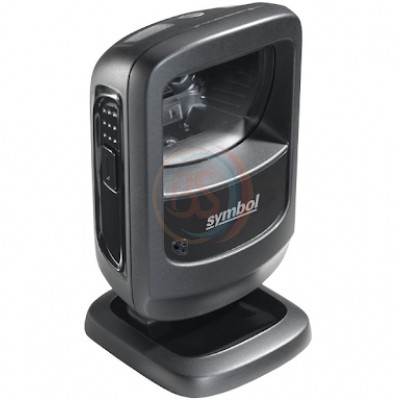

The Motorola DS9208 general purpose presentation scanner delivers the blazing speed typical of laser scanners on both 1D and 2D barcodes, accommodating 2D barcodes without sacrificing scanning quality or performance. Users never need to take time to align the barcode with the scanner or pause between scans. Since the DS9208 can scan barcodes printed on paper labels or on mobile phone displays, users can drive revenue by attracting the millions of customers who are using their cell phones to better manage their lives. Retailers can accommodate customers who download mobile coupons, mobile loyalty cards and more. Quick service restaurants can accept mobile coupons at the register. Hotels can allow guests to use electronic loyalty cards stored on their cell phones, eliminating the need to carry physical cards. And since theaters, theme parks and stadiums can scan mobile tickets as easily as a paper ticket, they can offer customers an added convenience: paperless ticketing.

Technical Information

• Barcode Dimension:
  • 1D
  • 2D
• Scan Pattern: Omni-directional
• Connectivity Technology: Cable
• Light Source: LED
• Image Sensor: Imager
• Barcode Symbology Supported:
  • 1-D:
  • UPC/EAN (UPCA/UPCE/UPCE1/EAN-8/EAN-13/JAN-8/JAN-13 plus Supplementals
  • ISBN (Bookland)
  • ISSN (Coupon Code)
  • Code 39 (Standard, Full ASCII, Trioptic)
  • Code 32 (Italian Pharmacode)
  • Code 128 (Standard, Full ASCII, UCC/EAN-128, ISBT-128 Concatenated)
  • Code 93
  • Codabar/NW7
  • 2 of 5 (Interleaved 2 of 5, Discrete 2 of 5, IATA , Chinese 2 of 5, Matrix 2 of 5, Code 11)
  • MSI Plessey
  • GS1 DataBar (Omnidirectional, Truncated, Stacked, Stacked Omnidirectional, Limited, Expanded, Expanded Stacked)
  • PDF417 (and variants):
  • PDF417 (Standard, Macro)
  • MicroPDF417 (Standard, Macro)
  • Composite Codes (CC-A, CC-B, CC-C)
  • 2-D:
  • TL C-39
  • Aztec (Standard, Inverse)
  • MaxiCode
  • DataMatrix/ECC 200 (Standard, Inverse)
  • QR Code (Standard, Inverse, Micro)
  • Postal:
  • U.S. Postnet and Planet
  • U.K. Post
  • Japan Post
  • Australian Post
  • Netherlands KIX Code
  • Royal Mail 4 State Customer
  • UPU FICS 4 State Postal
  • USPS 4CB
  • 1-D:
  • UPC/EAN (UPCA/UPCE/UPCE1/EAN-8/EAN-13/JAN-8/JAN-13 plus Supplementals
  • ISBN (Bookland)
  • ISSN (Coupon Code)
  • Code 39 (Standard, Full ASCII, Trioptic)
  • Code 32 (Italian Pharmacode)
  • Code 128 (Standard, Full ASCII, UCC/EAN-128, ISBT-128 Concatenated)
  • Code 93
  • Codabar/NW7
  • 2 of 5 (Interleaved 2 of 5, Discrete 2 of 5, IATA , Chinese 2 of 5, Matrix 2 of 5, Code 11)
  • MSI Plessey
  • GS1 DataBar (Omnidirectional, Truncated, Stacked, Stacked Omnidirectional, Limited, Expanded, Expanded Stacked)
  • PDF417 (and variants):
  • PDF417 (Standard, Macro)
  • MicroPDF417 (Standard, Macro)
  • Composite Codes (CC-A, CC-B, CC-C)
  • 2-D:
  • TL C-39
  • Aztec (Standard, Inverse)
  • MaxiCode
  • DataMatrix/ECC 200 (Standard, Inverse)
  • QR Code (Standard, Inverse, Micro)
  • Postal:
  • U.S. Postnet and Planet
  • U.K. Post
  • Japan Post
  • Australian Post
  • Netherlands KIX Code
  • Royal Mail 4 State Customer
  • UPU FICS 4 State Postal
  • USPS 4CB
• Depth of Field:
  • 0 mil - 4.50"@5 mil - Code 39
  • 0 mil - 8.50"@10 mil - UPC/EAN (80%)
  • 0 mil - 10.50"@13 mil - UPC/EAN (100%)
  • 0 mil - 3.80"@6.60 mil - PDF417
  • 0 mil - 4.70"@10 mil - Datamatrix

General Information

• Product Type: Desktop Barcode Scanner
• Brand Name: Motorola
• Manufacturer: Motorola, Inc
• Product Model: DS9208
• Product Name: DS9208 Desktop Barcode Reader

Physical Characteristics

• Height: 5.5"
• Width: 3.2"
• Depth: 3.2"
• Color: Black
• Weight (Approximate): 9.50 oz

Interfaces/Ports

• Host Interface:
  • Serial
  • USB
  • IBM 46XX
  • Keyboard Wedge

Other

• Green Compliant: Yes
• Green Compliance Certificate/Authority: RoHS

Warranty

• Limited Warranty: 1 Year
